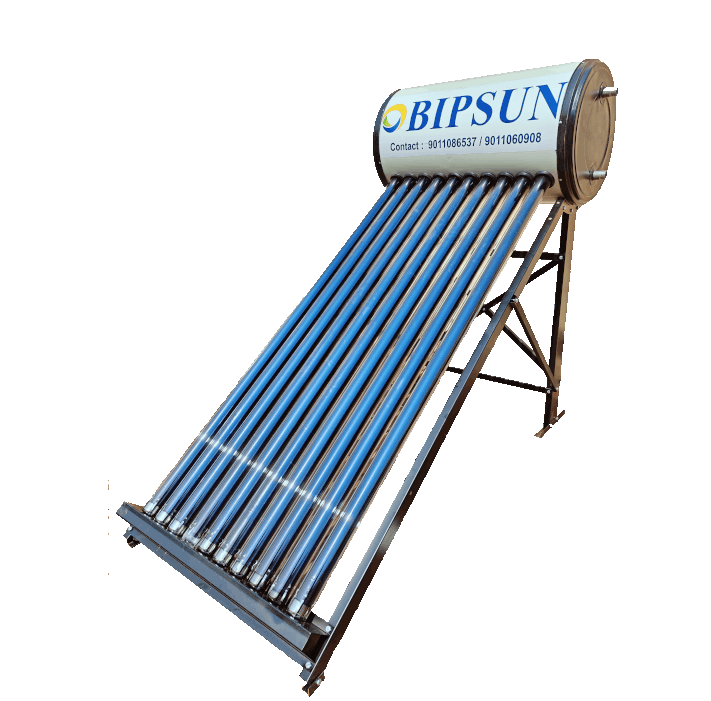

Evacuated Tube Collector System
Bipsun, a brand of Bipin Engineering Pvt. Ltd., is proud to offer our customers the best Evacuated Tube Collector System in India and around the world. Our solar water heaters are designed with high-energy absorption vacuum tubes ranging from 1800mm to 2100mm in length, ensuring optimal energy absorption and high efficiency.
We adhere to international standards in the design and manufacturing of our solar water heaters, ensuring they are built to last. Our water heater tanks come with a five-year warranty, guaranteeing reliable and consistent performance.
Available In :
Open loop thermosyphon system.
Non pressurised
To ensure a longer lifespan for your solar water heater, the inner tank is protected against corrosion through the addition of a magnesium sacrificial anode. This forms a layer of magnesium on the inner tank, providing enhanced durability.
Choose Bipsun for the best Evacuated Tube Collector System in Pune, Maharashtra, India & globally. We are committed to providing our customers with high-quality solar water heaters that are reliable, efficient, and cost-effective. Contact us today to learn more about how we can help you take advantage of the many benefits of solar energy.
Key Features :
Capacities :
100 LPD, 200 LPD, 250 LPD, 300 LPD, 500 LPD, 600 LPD.
Model & Capacity (LPD) | Vacuum Tube | Number of Tubes | |
Dia.(mm) | Length (mm) | ||
100 | Φ58 | 1800 | 10 |
200 | Φ58 | 1800 | 20 |
250 | Φ58 | 1800 | 25 |
300 | Φ58 | 1800 | 30 |
500 | Φ58 | 2100 | 32 |
600 | Φ58 | 2100 | 36 |
SI.NO | PARTICULARS | SPECIFICATION |
|---|---|---|
1 | Vacuum Tube outer diameter | 58 mm |
2 | Vacuum Tube inner diameter | 47 mm |
3 | Tube length | 1800 mm / 2100 mm |
4 | Tank Insulation | Polyurethane Foam (PUF) Insulation |
5 | Insulation Thickness | Minimum 80 mm |
6 | Stand frame | Galvanized / Power coated |
7 | Thermal Conductivity Of Insulation | 0.29 W/mk |
8 | Insulation Density | 48 Kg/meter3 |
9 | Inner tank material | GI / SS |
10 | Outer Tank Material | GI precoated Cover. |
11 | Electrical Back Up | 2 KW/ 3 KW (Optional) |
